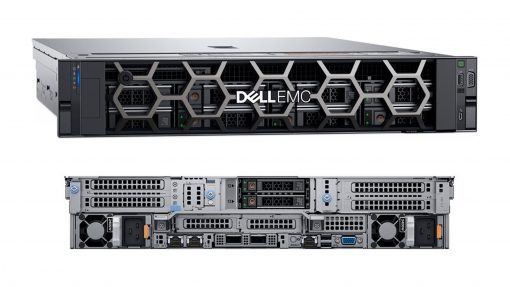

Dell EMC PowerEdge R7525 2u Rack Server
Part Number: R7525
The Dell EMC PowerEdge R7525 is a two socket, 2U rack servers that is designed to run workloads using flexible I/O and network configurations. The PowerEdge R7525 features the AMD® EPYC™ Generation 2 and Generation 3 processors, supports up to 32 DIMMs, PCI Express (PCIe) Gen 4.0 enabled expansion slots, and a choice of network interface technologies to cover networking options.
The PowerEdge R7525 is designed to handle demanding workloads and applications, such as data warehouses, ecommerce, databases, and high-performance computing (HPC).
Processor
Up to two 2nd or 3rd Generation AMD EPYCTMProcessors with up to 64 cores per processor
Operating System
Canonical® Ubuntu® LTS
Citrix® Hypervisor
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Accelerators
Up to three double wide 300W or six single wide 75W accelerators
Memory
DIMM Speed
Up to 3200MT/s
Memory Type
RDIMM
LRDIMM
Memory Module Slots
32 DDR4 RDIMM or LRDIMM
Maximum RAM
RDIMM 2TB
LRDIMM 4TB
Storage
Front Bays
Up to 24 x 2.5” NVMe
Up to 16 x 2.5” SAS/SATA (SSD/HDD) and NVMe
Up to 12 x 3.5” SAS/SATA (HDD)
Rear Bays
Up to 2 x 2.5” SAS/SATA/NVMe (HDD/SSD)
Storage Controllers
Internal Controllers
HBA345, PERC H345, PERC H745
External Controllers
H840, 12Gbps SAS HBA
Software RAID
S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HW RAID optional 2 x BOSS M.2
Internal Dual SD Module
