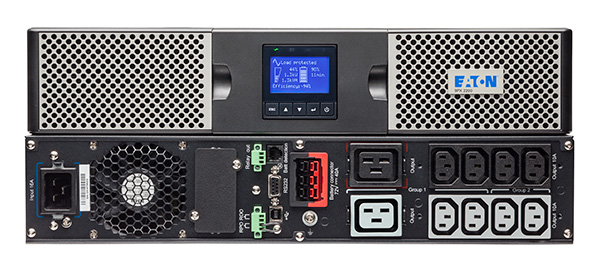

Eaton 9PX 3000VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included) 9PX3000IRT3UANZ

Part Number: 9PX3000IRT3UANZ

Extended battery module for the Eaton 9PX. The Eaton 9PX UPS provides energy efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Type
On-line
Wattage
3,000 W
VA rating
3,000 VA
Feature
With Display, Rack-mountable, Hot Swappable
Number of outlets
10 outlet
Brand
Eaton
General
Device Type
UPS – Power Factor Correction (PFC) – rack-mountable / external
Height (Rack Units)
3U
Power Device
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 176 – 276 V
Input Wiring
1-phase
Frequency Required
40 – 70 Hz
Input Connectors
1
Power Output Connectors Details
8 x power IEC 60320 C13 2 x power IEC 60320 C19 16A
Output Voltage
AC 200/208/220/230/240 V
Efficiency
98%
Battery
Run Time (Up To)
60 min at 300 Watts 36 min at 500 Watts 23 min at 800 Watts 13 min at 1200 Watts 7 min at 1800 Watts 4 min at 2500 Watts
