Lightware HDMI-TPS226-H10 Smart TPS Room Solution Bundle
Part Number: 91350014
This solution is well-suited for simple and fast integration into corporate environments, meeting rooms and boardrooms. It is also designed for easy installation with the mounting kits provided in the package. Utilizing HDBaseT technology, we can deliver video, audio and control signals over longer distances.

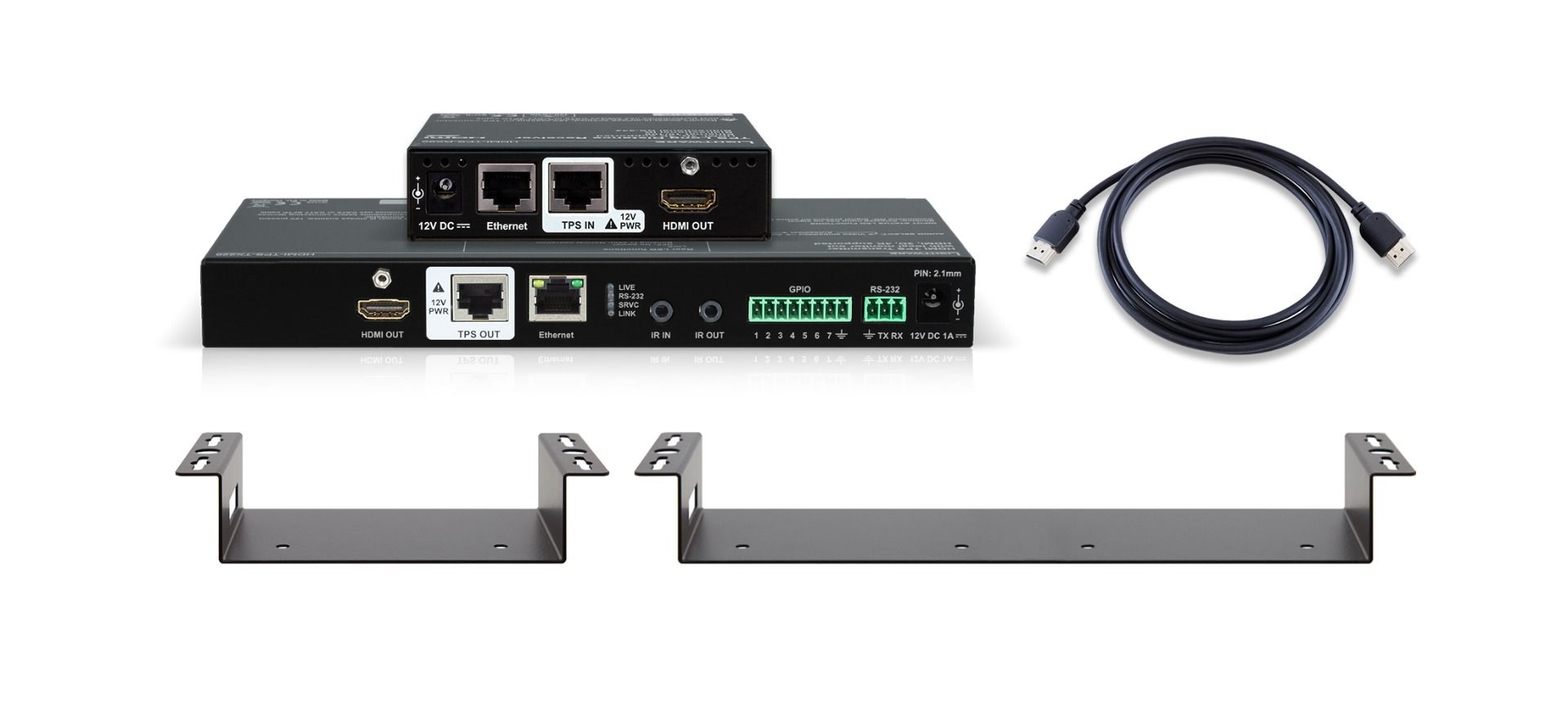

Product Bundle:
- HDMI-TPS-TX226 transmitter
- HMDI-TPS-RX96 receiver
- CAB-HDMI20-PHS100F 1 m Premium High Speed HDMI 2.0b flexy cable
- UD Kit under desk mounting kit
- UD Kit double under desk mounting kit double
Highlighted Features
- Built-in Event Manager control automation feature
- 1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Audio embedding (or replace original audio)
- Ethernet extension (100 Mbps)
- Command injection on RS-232 and IR ports
- GPIO control ports
- Bi-directional RS-232 and IR extension (pass-through and control)
- Local or remote (remote-send / remote-receive) power source
- Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
