Onlogic Compact Fanless AMD Ryzen Mini PC
Part Number: ML100G-40
FANLESS AMD RYZEN™ INDUSTRIAL COMPUTER
Available with either the dual-core R1505G or quad-core V1605B multi-threaded processors and up to 32GB of DDR4 memory, the ML100G-40 offers plenty of power for heavy multitasking workloads. With an excellent cost-to-performance ratio, the ML100G-40 harnesses AMD Radeon™ Vega 3 or 8 Graphics to easily drive triple independent displays.
FANLESS RELIABILITY
OnLogic’s Hardshell™ Fanless Technology is optimized for reliable passive cooling and protects the system from dust, debris, chemical and moisture ingress. Solid-state industrial components and the removal of moving parts significantly extend the lifespan of the system while versatile mounting options allow the ML100G-40 to fit into space-constrained applications.
CONNECTIVITY FOR INDUSTRIAL APPLICATIONS
The ML100G-40 is ready for a range of industrial applications with dual LAN ports, fast M.2 storage, and triple independent displays. The system brings flexible configuration options to a compact chassis with DIO, Wi-Fi/Bluetooth, and 4G LTE wireless connectivity to adapt to any situation.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| SKU | ML100G-40 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | AMD Ryzen™ R1505G AMD Ryzen™ V1605B |
| Processor Speed | 2.4 GHz Base, 3.3GHz Max (R1505G) 2 GHz Base, 3.6GHz Max (V1605B) |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Zen |
| Processor Cores | 2 (R1505G) 4 (V1605B) |
| Graphics/GPU | AMD Radeon™ Vega 3 Graphics (R1505G) AMD Radeon™ Vega 8 Graphics (V1605B) |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2400 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |

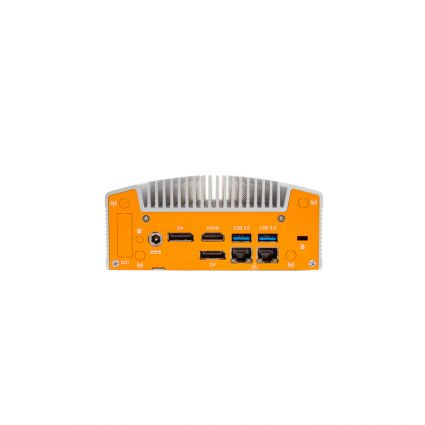

| Rear I/O | 2 DisplayPort connectors 1 HDMI port (Does not support Audio, see notes below.) 2 Gb LAN ports 2 USB 3.2 Gen 2 ports 1 DC jack |
| Front I/O | 1 Audio jack (line-out; mic-in) 2 USB 2.0 ports 1 USB 3.1 port 1 Optional COM port |
| Expansion Options | 1 M.2 E Key 2230 slot |
| Storage Options | 1 M.2 2260 PCIe x4/SATA slot |
| LAN Controller | Realtek RTL8111G |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 142 x 62 x 107 mm 5.6″ x 2.4″ x 4.2″ |
| Case Type | Compact Fanless |
| Case Material | Aluminum Extrusion Steel |
| Port Punchouts | 4 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
