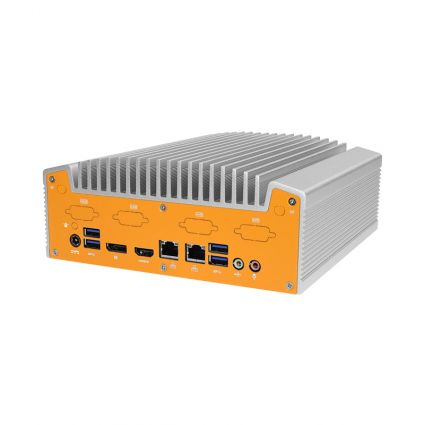

OnLogic Fanless Industrial Intel 6th Gen Computer w/optional i7 and 4 COM
Part Number: ML500G-30
NEXT GENERATION PERFORMANCE
With the option to select an efficient dual-core Celeron processor, all the way up to a powerful quad-core i7 CPU, the ML500G-30 leverages the many benefits of Intel’s 6th generation Skylake processing architecture to let you choose the level of performance and efficiency you need. The ML500G-30 supports up to 32GB of DDR4 memory and a wide range of storage configurations.
DESIGNED FOR LONGEVITY
The ML500G-30 employs OnLogic’s own Hardshell™ Fanless Technology which gives you the satisfaction of knowing that this system can handle the harshness of industrial deployments with its all-metal, fanless, ventless design. Often points of failure in conventional computers, dust, airborne particles and even chemical or moisture ingress won’t find their way into the ML500G-30, and the absence of any moving parts extends its lifespan dramatically. With its compact size, solid state design, and shock & vibration resistance, the ML500G-30 proves to be an extremely flexible computing platform.
DIVERSE I/O LEADS TO VERSATILITY
The ML500G-30 offers a wide array of I/O that makes it an excellent choice as a factory workstation, industrial monitoring system, or controller hub. With both a DisplayPort connector and an HDMI port, the ML500G-30 can connect dual independent HD displays with resolutions up to 4K. The system’s 6 USB ports (including 4 USB 3.0), 4 COM ports (optional), and dual Gb LAN, allow the ML500G-30 to easily interface with industry-specific devices old and new, making it perfect to integrate into an existing system or easily power a new one.
| SKU | ML500G-30 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Skylake |
| Processor Cores | 2 4 |
| Chipset | Intel Q170 |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |
| Rear I/O | 1 HDMI port 1 DisplayPort 2 Gb LAN ports 4 USB 3.2 Gen 1 ports 4 COM ports (Optional) 2 Audio jacks; line-out, mic-in |
| Front I/O | 2 USB 2.0 ports Power button |
| Expansion Options | 1 PCIe Mini Card (full height) 1 Half-height mPCIe slot |
| Storage Options | mSATA |
| RAID Support | 0/1 |
| LAN Controller | Intel I210 GbE Intel I219 GbE |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 197 x 79.2 x 202 mm 7.76″ x 3.12″ x 7.95″ |
| Case Material | Aluminum Steel |
| Port Punchouts | 3 Antenna holes |
| Mounting Options | DIN-mount Wall-mount |
