OnLogic Fanless Industrial Intel Apollo Lake Mini-ITX Computer
Part Number: ML450G-11
INDUSTRIAL APOLLO LAKE
The ML450G-11 is an Apollo Lake industrial PC configurable with either the Dual-Core Celeron N3350 or the Quad-Core Pentium N4200, both of which sips power by only drawing 6 watts of power. The Apollo Lake generation of processors brings greatly improved graphical performance that allows the ML450G-11 to take on complex multimedia tasks and, with up to 8GB of DDR3L low-voltage memory, is ready for heavy-duty multitasking.
DURABILITY AND VERSATILITY
The durable and innovative Hardshell Fanless Technology combines functional cooling with attractive industrial design. The fanless nature of the system allows for silent operation that is protected from dust, debris, and other contaminants for operation in any environment, while the flexible mounting options ensure compatibility with your mounting solution.
BUILT FOR THE THE FACTORY
Ideally suited as an industrial monitoring system, factory workstation, or controller hub thanks to its versatile I/O, the ML450G-11 features 6 USB ports (including 4 USB 3.0 ports), 4 COM ports, and dual Gb LAN. The system is capable of communicating with a variety of devices including flow control monitors, network switches and HMI panels. A mPCIe slot (full or half-height) as well as two M.2 slots (one for an SSD and one for wireless connectivity) provide expansion that adds to the flexibility of the ML450G-11.
| SKU | ML450G-11 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | Intel Celeron N3350 Intel Pentium N4200 |
| Processor Speed | 1.1 GHz |
| Max Burst Frequency (GHz) | 2.40 (N3350) 2.50 (N4200) |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Apollo Lake |
| Processor Cores | 2 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics 500 Intel HD Graphics 505 |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1866 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |

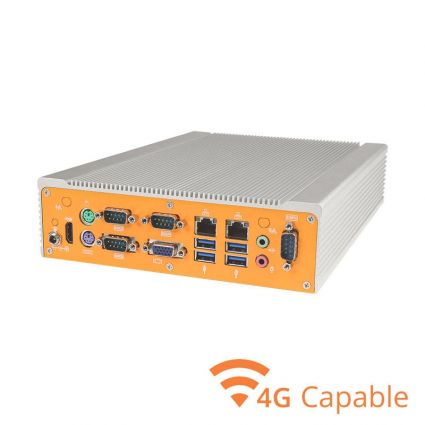

| Rear I/O | 1 VGA port 1 HDMI port 2 Gb LAN ports 4 USB 3.2 Gen 1 ports 4 COM ports (3 of which offer RS232/422/485 selection) 2 Audio Jacks (Mic-in; Line-out) 2 PS/2 ports |
| Front I/O | 2 USB 2.0 ports Power Button |
| Expansion Options | 1 M.2 2230 slot 1 PCIe Mini Card slot (full/half height) |
| Storage Options | M.2 (2260/2280) SATA 6 Gb/s |
| LAN Controller | Realtek RTL8111G |
| System Monitoring | Watchdog Timer |
| Input Voltage | 12 VDC / 19~24 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 196 x 57 x 270 mm 7.71″ x 2.24″ x 10.6″ |
| Case Type | Customizable Fanless Modular |
| Case Material | Aluminum Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | Rubber Mounting Feet DC Jack Retaining Clip |
