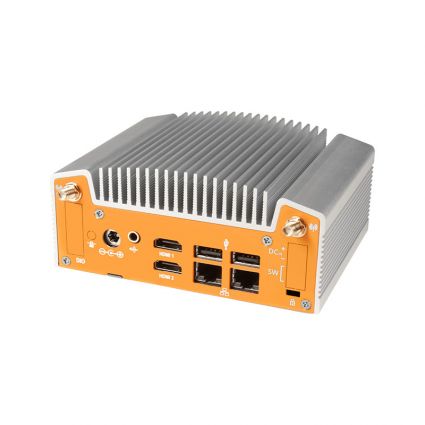

OnLogic Fanless Industrial Intel Bay Trail NUC Computer
Part Number: ML100G-10
MORE POWER PER WATT
Featuring Intel’s Quad Core Bay Trail N2930 CPU, the ML100G-10 (part of the ML100 Series) provides ample power for a wide range of processor-intensive tasks. Its low power consumption perfectly balances efficiency and performance, allowing for HD media playback or dual independent displays while drawing less than 25 watts.
VERSATILITY IN THE PALM OF YOUR HAND
Wrapped in a hardened, fanless enclosure that protects the system against dust and debris while eliminating the internal fan as a point of failure, the ML100G-10 takes the NUC form factor to a place it’s never been. Built using our Hardshell™ Fanless Technology, the ML100G-10 is optimized for performance and cooling, to help keep the system running even when the going gets hot.
CONNECTIVITY WHERE YOU NEED IT
Despite its size, the ML100G-10 offers a full complement of I/O, including something new to the NUC form factor; dual Gb LAN ports. Other onboard connectivity includes 4 USB ports (1 USB 3.0), dual HDMI, an RS-232 COM port, and digital audio out. The system also comes standard with both an internal mSATA and PCIe Mini Card slots, offering a range of storage and wireless options.
| SKU | ML100G-10 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | Intel Celeron N2930 |
| Processor Speed | 1.83 GHz |
| Max Burst Frequency (GHz) | 2.16 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Bay Trail |
| Processor Cores | 4 |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1333 MHz |
| Memory Slot Count | 1.000000 |
| Number of Displays Supported | 2 |
| Rear I/O | 2 USB 2.0 ports 2 Gb LAN port 1 Line-out connector 2 HDMI ports 1 DC-Jack (Terminal Block Power Optional) |
| Front I/O | 1 USB 2.0 port 1 USB 3.2 Gen 1 port 1 RS-232/422/485 COM port Power button |
| Expansion Options | 1 Half-height mPCIe slot |
| Storage Options | mSATA |
| LAN Controller | Intel 82583V PCIe GbE |
| Input Voltage | 9~24 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 40°C |
| Dimensions (WxHxD) | 142 x 62 x 107 mm 5.6″ x 2.4″ x 4.2″ |
| Case Type | Compact Fanless |
| Case Material | Aluminum Extrusion Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | AC Adapter Rubber feet |
