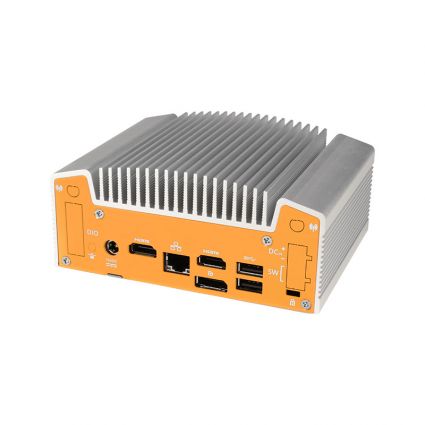

OnLogic Fanless Industrial Intel Skylake NUC Computer
Part Number: ML100G-50
POWER IN THE PALM OF YOUR HAND
Powerful Intel 6th Generation Skylake i3-6100U and i5-6300U processing options and Intel HD 520 graphics give the ML100G-50 bragging rights over the competition, offering unprecedented performance in a computer that fits in the palm of your hand. Seamless, native 4K support while accepting either 12V or 19V DC power input gives the ML100G-50 the flexibility to tackle high-end digital signage and other media-heavy applications or processor-intensive industrial automation tasks.
FORM AND FUNCTION, PRECISION BALANCED
Boasting an eye-catching design that stands out from the pack in the drab industrial PC sector, the ML100G-50 is designed to be as functional and versatile as it is visually distinct. The fanless and ventless chassis, optimized for efficient cooling and durability thanks to our Hardshell™ Fanless Technology, armors this system against industrial environmental hazards that would bring commercial NUC devices to their knees.
UNRIVALED VERSATILITY
The ML100G-50’s compact size belies impressive versatility, with an array of I/O including dual HDMI and DisplayPort (enabling dual independent display support), three standard USB 3.0 ports, and a USB 3.1 Type-C port on the front of the system. Gb LAN provides fast connection speeds and support for Intel AMT, allowing for convenient remote access. Inside, the ML100G-50 can support 802.11ac Wi-Fi, Bluetooth 4.0, and other wireless connectivity needs, while storage is offered via a fast, reliable, M.2 SSD.
| SKU | ML100G-50 |
|---|---|
| Hardware Line | Fanless Industrial |
| Cooling Type | Fanless |
| Processor | Intel Core i3-6100U Intel Core i5-6300U |
| Processor Speed | Up to 2.4GHz |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Skylake |
| Processor Cores | 2 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics 520 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2133 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |
| Rear I/O | 2 HDMI ports 1 DisplayPort 1 Gb LAN port 2 USB 3.2 Gen 1 ports |
| Front I/O | 1 USB 3.2 Gen 1 port 1 USB Type C 3.1 port 1 Audio jack; Speaker/Mic-in 1 Power Button |
| Expansion Options | 1 M.2 2230 slot |
| Storage Options | M.2 NGFF SSD 22×60 |
| LAN Controller | Intel I219LM GbE |
| Input Voltage | 12 VDC / 19 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 40°C |
| Dimensions (WxHxD) | 142 x 62 x 107 mm 5.6″ x 2.4″ x 4.2″ |
| Case Type | Compact Fanless |
| Case Material | Aluminum Extrusion Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | Rubber feet DC Jack Retaining Clip |
