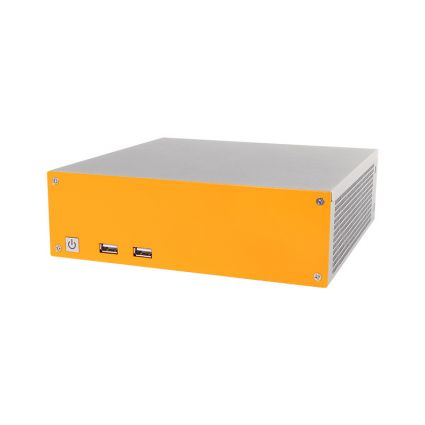

OnLogic Industrial Intel Celeron Mini-ITX Computer
Part Number: MC500-10
EFFICIENTLY POWER YOUR APPLICATION
Powered by Intel’s quad core J1900 Celeron processor, the MC500-10 (part of the MC500 Series) perfectly balances energy efficiency (consuming less than 20 watts) and processing power. Unlike previous generations of energy-efficient processors that struggled with HD graphics and processor-intensive applications, this compact system can handle everything from simple, single function embedded computing tasks to complex desktop and HD media reproduction.
DURABILITY, VERSATILITY, SUPERIORITY
Designed with embedded commercial applications in mind, the MC500-10 is enclosed in a sleek, scratch-resistant, all-metal enclosure that looks equally at home on a desktop or in a warehouse. The cross-case ventilation is optimized for low noise and reliable, 24/7 operation, and the entire chassis works to eliminate EMI and ensure effective heat conduction. The included mounting brackets make the MC500-10 easy to securely install on any vertical or horizontal surface for peace of mind and ease of use.
CONNECTIVITY WHERE YOU NEED IT
Packing a rich feature set into a compact package, the MC500-10 is equipped with 6 USB ports (including 2 USB 3.0 ports), dual Gb LAN, and two RS-232 COM ports. It can also power dual independent displays via VGA and DVI-I ports, and the system also includes two PS/2 ports for legacy KVMs. A full-height PCIe MIni Card slot can be utilized for expansion as well as Wi-Fi and Bluetooth connectivity.
| SKU | MC500-10 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Processor | Intel Celeron J1900 |
| Processor Speed | 2.0 GHz |
| Max Burst Frequency (GHz) | 2.42 |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Bay Trail |
| Processor Cores | 4 |
| Chipset | Shared with CPU |
| Graphics/GPU | Intel HD Graphics |
| Memory Type | DDR3L SO-DIMM (non-ECC) |
| Memory Capacity | 8 GB |
| Memory Speed | 1333 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |
| Rear I/O | 2 USB 2.0 ports 2 USB 3.2 Gen 1 ports 1 VGA port 2 LAN ports 1 DVI-I port 2 RS-232 COM ports 2 PS/2 ports 3 Audio jacks: line-out, line-in, mic-in |
| Front I/O | 2x USB ports Power Button |
| Storage Options | 2.5″ HDD/SSD |
| LAN Controller | Realtek RT8111G-CG |
| Onboard Connectors | 3 USB 2.0 via 2 pin headers 2 SATA connectors 1 Front panel audio pin header 1 S/PDIF header 1 Front panel pin header 1 Fan pin header 1 LPT pin header 1 LVDS connector (24-bit, dual channel) 2 RS-232 COM pin headers (AT/Everex) 24-pin ATX connector |
| Input Voltage | 12 VDC |
| Power Input | DC jack |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 192.6 x 59.3 x 198.1 mm 7.6″ x 2.35″ x 7.8″ |
| Case Type | Compact Customizable Modular |
| Case Material | Steel |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | DIN-mount VESA-mount Wall-mount |
| Included Accessories | 60 W AC Adapter and cord Adhesive foot pads |
