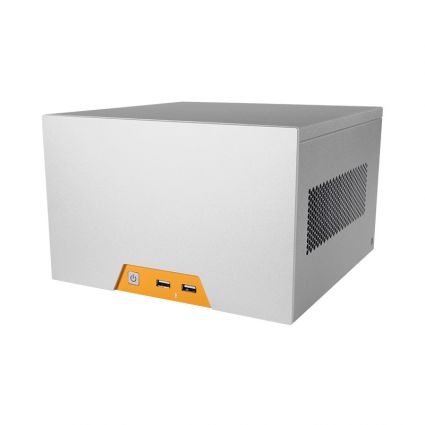

OnLogic Industrial Intel Coffee Lake Expandable Computer
Part Number: MC850-53
ACCELERATED PERFORMANCE
To handle the most demanding computational tasks, the MC850-53 harnesses the power of Intel’s 8th Generation Hexa-Core Coffee Lake processors and Mini ITX graphics cards. This pairing allows the the MC850-53 to excel in applications that take full advantage of the system’s GPU for machine learning, machine vision, and edge computing. For applications not requiring GPU, the PCIe x16 expansion allows for numerous full-height expansion cards. Optional 4G LTE connectivity is also available, enabling remote network access or failover protection.
INCREDIBLE PERFORMANCE TO VOLUME RATIO
The MC850-53 was designed to accommodate the high-performance components you need without sacrificing functionality in a compact industrial form factor. Eliminating the need for external adapters or power bricks, the MC850-53 accommodates direct-plug power with an integrated 300W PSU. Corrosion-resistant galvanized steel and anodized aluminum construction make the MC850 well suited for a wide range of industrial computing installations.
EXPANDED CAPABILITY
The MC850-53 integrates seamlessly into a range of applications with its functional I/O and potential for expansion. A complimentary array of modern and legacy I/O, the MC850-53 features 6 USB ports (4 of them USB 3.0), dual COM, DisplayPort connectors, and Gb LAN ports. A SATA M.2 M Key 2242/2260/2280 for high-speed storage with up to two more 2.5” SATA3 drives makes for impressive storage capacity. Expand the capabilities of your system with an M.2 E Key 2230 slot for Wi-Fi, a mPCIe slot for 4G LTE connectivity, and a PCIe x16 for I/O expansion or Nvidia Quadro and GTX GPUs.
| SKU | MC850-53 |
|---|---|
| Hardware Line | Fanned Industrial |
| Cooling Type | Actively Cooled |
| Processor Socket | LGA1151 |
| Processor Generation | Coffee Lake |
| Processor Cores | 2 4 6 |
| Chipset | Intel H310 |
| Graphics/GPU | Intel UHD Graphics 610 Intel UHD Graphics 630 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Speed | 2666 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 2 |
| Rear I/O | 3 DisplayPort connectors 4 USB 3.2 Gen 1 ports 2 COM ports 2 Gb LAN ports 2 Audio jacks (mic in, line-out) |
| Front I/O | 2 USB 2.0 ports Power button |
| Expansion Options | 1 M.2 E Key 2230 slot 1 PCIe Mini Card slot (full/half height) 1 PCIe x16 slot |
| Storage Options | 2.5″ HDD/SSD 1 SATA M.2 M Key 2242/2260/2280 slot |
| LAN Controller | Intel I210 GbE Intel I219V |
| Included Power Supply | 300 W switching power supply |
| System Monitoring | Watchdog Timer |
| Power Input | C13 ~ C14 Coupler |
| Operating Temperature Range | 0 ~ 50°C |
| Dimensions (WxHxD) | 230 x 146 x 241.5 mm 9.06″ x 5.75″ x 9.51″ |
| Case Type | Customizable Expandable Modular |
| Case Material | Aluminum Steel |
| Port Punchouts | 4 Antenna holes |
| Mounting Options | Wall-mount |
