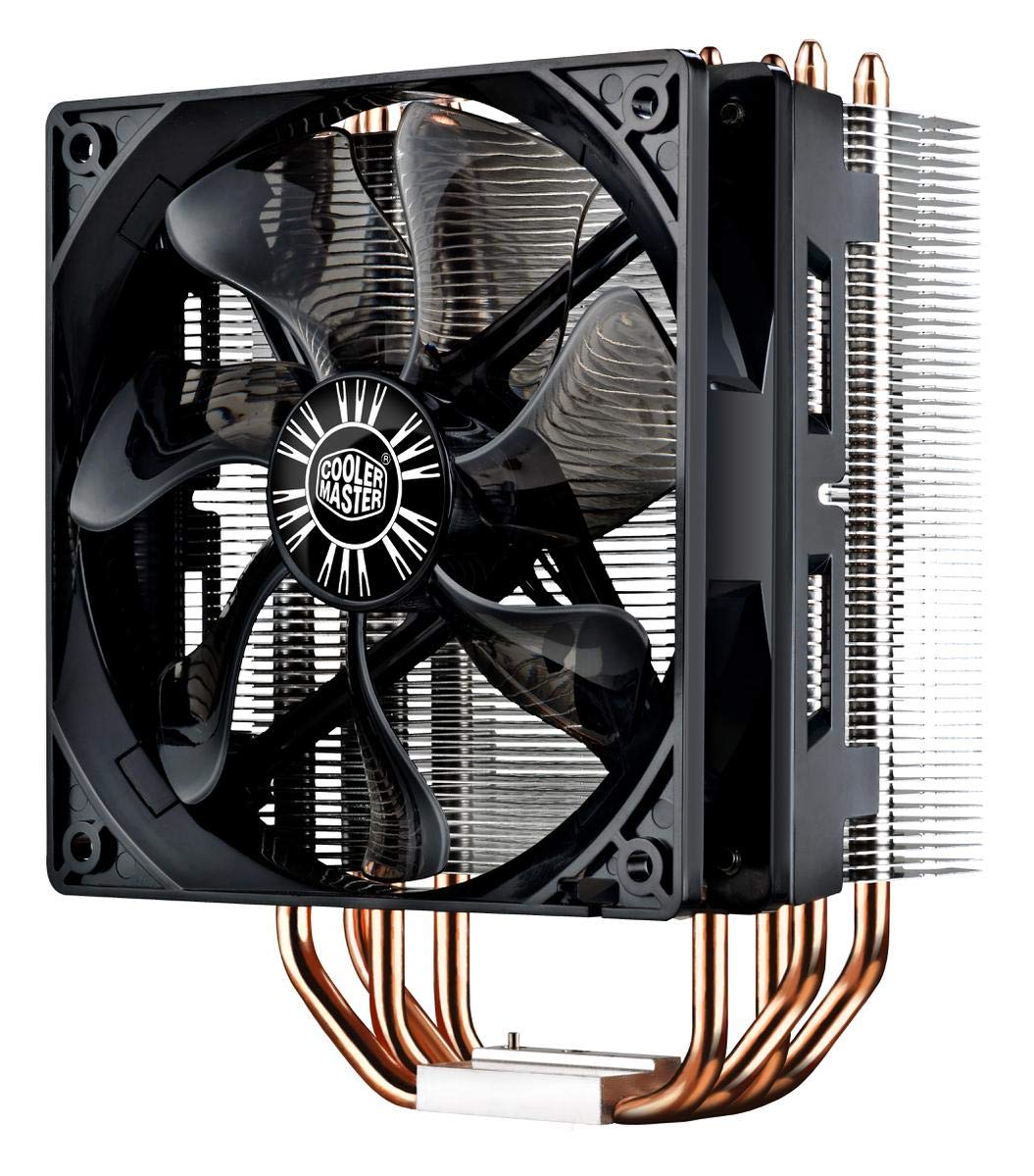

Hyper 212 Evo – CPU Cooler with 120mm PWM Fan
Part Number: RR-212E-20PK-R2
The Hyper 212 EVO cooling systems are designed and optimized to provide the best user experience and cooling potential for a new generation of processors. The Hyper 212 EVO now features four Cooler Master patented Continuous Direct Contact (CDC) heat pipes that are tightly packed into a flat array on the CPU Cooler base. This acts as a virtual vapor chamber that dissipates a large amount of heat.
General
Product Type
Processor cooler
Width
8 cm
Depth
12 cm
Height
15.9 cm
Weight
0.58 kg
Heatsink & Fan
Compatible With
LGA775 Socket, LGA1156 Socket, Socket AM2, Socket AM2+, LGA1366 Socket, Socket AM3, LGA1155 Socket, Socket AM3+, LGA2011 Socket, Socket FM1, Socket FM2, LGA1150 Socket, Socket FM2+
Processor Compatibility
Core i7 Extreme Edition Core i7 Core i5 Core i3 Core 2 Extreme Core 2 Quad Core 2 Duo Pentium Celeron FX Series AMD A Series Phenom X4 Phenom X3 Phenom II Athlon II Athlon X2 Athlon Sempron
Heatsink Material
Aluminium
Heatsink Dimensions
159 mm x 116 mm x 51 mm
Fan Diameter
120 mm
Fan Height
25 mm
Fan Bearing
Long life sleeve bearing
Rotation Speed
600-2000 rpm
Air Flow
24.9-82.9 cfm
Air Pressure
0.3-2.7 mm
Noise Level
9 – 36 dBA
Power Connector
4-pin fan connector
Rated Voltage
12 V
Rated Current
0.22 A
Power Consumption
2.64 W
Features
Heat pipe technology, Continuous Direct Contact (CDC) technology
