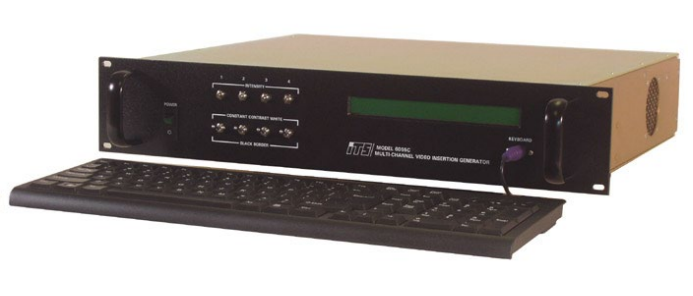

Eon 6055C-4 Four Channel Video/ IRIG Inserter

Part no: 6055C-4

Eon 6055C-4 Four Channel Video/ IRIG Inserter

Call for Details | Why Can't I See a Price?

Touchpoint can assist with new and refurbished equipment in most cases.

Request a Quote

  • We are a B2B sales organisation & do not sell to individual consumers.
  • We are located in Australia and in most cases will not be able to sell outside AU/NZ
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form

Eon 6055C-4 Four Channel Video/ IRIG Inserter

Part Number: 6055C-4



Features

  • Decodes and inserts IRIG B time message into four asynchronous video signals
  • Generates and inserts up to 1920 alphanumeric characters each into each video channel
  • Inserts Countdown Clock, synchronized with the applied IRIG B time signal
  • Provides 20 discrete, event/alarm inputs (five per channel). Messages are user programmable
  • Two fonts, each with horizontal and vertical size selection
  • Independent insertion of machine-readable digital information using left edge encoding method on each video channel
  • Independent insertion of boresight reticle on each video channel. User selectable formats
  • 80 character backlit LCD Display, displays time, status and operator setup prompting
  • RS-232C and Ethernet ports provide means for remote control and annotation of display
  • Detachable keyboard provides means for the operator to annotate and format video display locally
  • Accepts RS170, NTSC, S-Video input or PAL



Click here to download datasheet from Eon.
