OnLogic Cincoze Rugged Intel Coffee Lake Fanless Computer with Expansion
Part Number: DS-1201
HARNESSING COFFEE LAKE

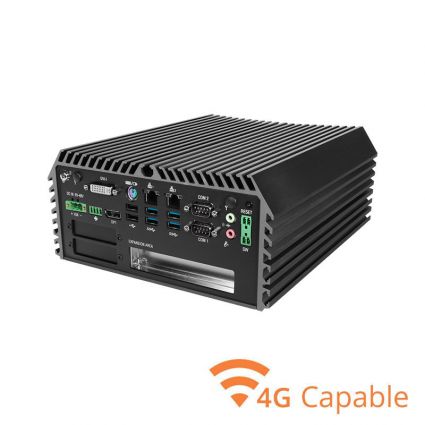

The DS-1201 is a compact powerhouse harnessing the Intel 8th Generation Coffee Lake processors with options ranging from Dual-Core Celeron up to Hexa-Core i7 and support for up to 64 GB of memory. Its extruded aluminum chassis makes it ready for any environment and also features optional 4G LTE connectivity, enabling remote network access or failover protection as well as advanced features including vPro, virtualization, and hyperthreading on select processors.
BUILT TO LAST
The DS-1201 is a fanless, jumper-less, and cable-less rugged industrial computer ready for environments ranging from the factory floor to the inside of vehicles. Its design affords it protection that drastically extends the life of the system by keeping dust and other harmful contaminants out and making the system resistant to shock and vibration. A wide operating temperature range of -40°C to 70°C, as well as a wide power input of 9~48 volts, adds to the impressive range of features that make the DS-1201 so reliable.
CUSTOMIZE TO YOUR NEEDS
With two DisplayPort connectors and DVI-I port, the DS-1201 can drive triple independent HD displays, while two Gb LAN ports offer gold standard network connectivity for industrial and rugged applications. Cincoze’s CMI expansion modules and PCI/PCIe expansion (with optional riser cards) are available for applications requiring additional I/O. Rounding out the system’s flexibility is an externally accessible 2.5” drive, three mPCIe expansion slots and support for an M.2 PCIe x4 NVMe SSD.
CELLULAR CONNECTIVITY
This system is compatible with our Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| Hardware Line | Rugged |
|---|---|
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Coffee Lake |
| Processor Cores | 2 4 6 |
| Chipset | Intel Q370 |
| Graphics/GPU | Intel UHD Graphics 610 Intel UHD Graphics 630 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 64 GB |
| Memory Speed | 2666 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 2 Gb LAN ports 2 COM ports 4 USB 3.2 Gen 1 ports 2 USB 3.2 Gen 1 ports 1 DisplayPort connector 1 DVI-I port 1 3-pin terminal block 2 Audio jacks (mic in, line-out) 1 Remote Power On/Off connector, (2-pin terminal block) 1 External fan connector (4-pin terminal block) 1 PS/2 port |
| Front I/O | 2 USB 3.2 Gen 1 ports 1 DisplayPort connector |
| Expansion Options | 2 Cincoze Modular I/O slots 3 PCIe Mini Cards (full-height shared with mSATA) 2 SIM card sockets (external) |
| Storage Options | 2.5″ HDD/SDD (Externally Accessible) 2.5″ HDD/SSD 3 mSATA slots (Shared by mPCIe) 1 M.2 2280 PCIe x4/SATA slot |
| System Monitoring | Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 3-pin Terminal Block connector |
| Operating Temperature Range | -40 ~ 70°C |
| Operating Humidity | 10% – 95% (non-condensing) |
| Shock Tolerance (Operating) | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Vibration Tolerance (Operating) | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| Dimensions (WxHxD) | 227 x 108 x 261 mm 8.94 x 4.25″ x 10.28″ |
| Case Type | Automotive Expandable Fanless Modular Ruggedized |
| Case Material | Aluminum Extrusion |
| Port Punchouts | 2 Antenna holes |
| Mounting Options | Wall-mount |
