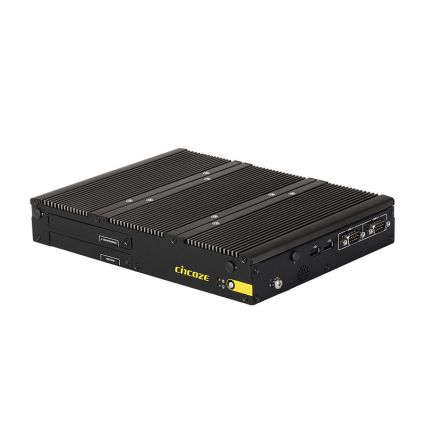

OnLogic Cincoze Rugged Intel Whiskey Lake Slim Fanless Computer P2102

POWERFUL WHISKEY LAKE PERFORMANCE

The P2102 is a powerful and versatile embedded edge computer built for industrial workstation, outdoor kiosks, or in-vehicle operations. The system features Intel 8th Generation Whiskey Lake Core i3 and i5 processors supporting up to 64GB of DDR3L 2400 MHz SO-DIMM memory for capable data processing and multitasking in the toughest environments. The P2102 is configurable with 4G wireless for remote network access and failover protection and can be paired with a range of touch panel displays using Cincoze’s Convertible Display System (CDS) design.

COMPACT RUGGED DESIGN

The P2102 installs easily in space-constrained deployments thanks to its compact 254.5 x 190 x 41.5 mm profile. Its fanless design protects from dust, debris, and other contaminants, greatly extending the life of the system. The P2102 is fanless, cableless, and jumperless, which helps the system maintain high shock and vibration resistance commonly found in mobile installations. Its wide -40°C to 70°C operating temperature range and 9~48 voltage input makes it the perfect choice for harsh environments and installs virtually anywhere with wall, VESA, DIN rail, and CDS mounting options.

I/O FOR RUGGED EDGE COMPUTING

The P2102 is small but packed with the functional I/O required for embedded edge deployments. Sixteen isolated DIO, four COM, five USB (three of which are USB 3.2) are spread across the sides of the system for easy connection in any installation. The system drives dual displays through VGA and DisplayPort, with the latter featuring up to 4K resolution. Ignition sensing and PoE functionality can be added via Cincoze’s CFM (Control Function Module), making it perfect for in-vehicle and surveillance applications. A SIM card slot and 2.5” drive tray are externally accessible without opening the system for quick and easy swapping.
