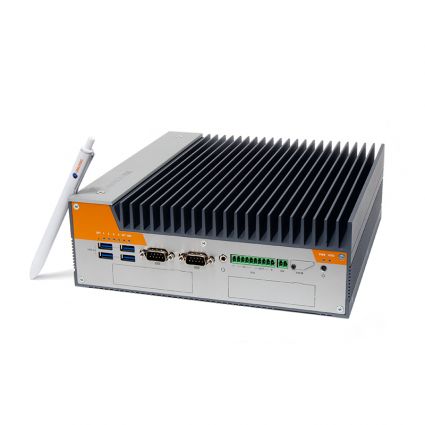

OnLogic Karbon 700 High-Performance Rugged Edge Computer
Part Number: K700-SE
HIGH-PERFORMANCE RUGGED EDGE COMPUTER
Karbon 700 is a rugged edge computer matching high-performance with functional adaptability for reliable operation in virtually any environment. Blazing fast Hexa-Core Coffee Lake processors and 9th Gen processors (coming soon) push the limit of what’s possible with embedded computing.
The C246 chipset enables Xeon processing and ECC memory for rugged server capability at the edge and allows for real-time machine learning, object detection, and behavior recognition while minimizing the dependency on large-scale data centers for data processing and reducing the cost of data transmission over paid data networks.
RUGGED DURABILITY
We built Karbon 700 to meet MIL-STD-810G, UNECE Reg. 10 E-Mark, and EN50155 rolling stock standards* to ensure stable and reliable performance to keep your application up and running even in the most challenging environments.
Our Hardshell Fanless design, medical-grade ESD and interference protections, and solid-state components allow the system to thrive where most computers would fail and support wide input voltage of 9-48VDC and operating temperature range of -40-70°C.
*Configuration dependent.
FLEXIBILITY VIA CUSTOMIZATION
Karbon 700 was designed for flexible and reliable performance at the edge. Standard features include integrated CAN bus and 8-bit DIO, 6 USB 3.1 Gen 1 ports, triple Gb LAN and support for triple independent displays via DisplayPort connectors. Connectivity options include 4G LTE, AC Wi-Fi, and gigabit LAN while support for up to four separate storage drives (two high-speed NVMe drives and two optional hot-swap drives) offers ample storage capacity.
Customize the system to your exact application needs with our ModBay™ expansion technology to deploy additional gigabit LAN, PoE support, and dual mPCIe expansion with external SIM support.
CELLULAR CONNECTIVITY
This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
| Hardware Line | Rugged |
|---|---|
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Coffee Lake |
| Processor Cores | 2 4 6 |
| Chipset | Intel C246 |
| Graphics/GPU | Intel UHD Graphics 610 Intel UHD Graphics 630 |
| Memory Type | DDR4 SO-DIMM (non-ECC) DDR4 SO-DIMM (ECC) |
| Memory Capacity | 64 GB |
| Memory Speed | 2666 MHz |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 5-Pin Power Input (9 ~ 48 V) 3-pin CAN bus 3 DisplayPort connecters 2 USB 3.2 Gen 1 ports 3 GbE LAN ports (2 PoE optional) External Fan connection 2 ModBay (4 LAN, 4 PoE, etc.) |
| Front I/O | 4 USB 3.2 Gen 1 ports 2 RS-232/422/485 COM ports 8-bit Isolated Digital I/O 2-pin Remote Power Switch External Mini-SIM slot 2 2.5” Hot-Swap Drives (optional) Audio jack (Line-In; Mic-In) Power button |
| Expansion Options | 1 M.2 E Key 2230 slot 1 mPCIe card slot (shared with mSATA) 1 M.2 2230/60/80 M-key (PCIe x2) 1 PCIe Mini Card (full height) |
| Storage Options | 1 mSATA (shared with mPCIe) 2 SATA III 2.5″ Drives 1 M.2 2280 PCIe x4 slot |
| RAID Support | 0 1 |
| LAN Controller | Intel I210AT GbE Intel I219LM GbE |
| System Monitoring | AMT Support PTT in BIOS TPM (Optional) Watchdog Timer |
| Input Voltage | 9~48 VDC |
| Power Input | 5-pin Terminal Block |
| Operating Temperature Range | -40 ~ 70°C (w/ 35W CPU) -40 ~ 50°C (w/ 65W CPU) -40 ~ 40°C (w/ 80W CPU) |
| Operating Humidity | 10% – 95% (non-condensing) |
| Shock Tolerance (Operating) | Tested according to MIL-STD-810G, Method 516.6 for Ground Level Equipment 40g, 11ms, sawtooth, 3 pulses positive and negative per axis, 3-axis, operating |
| Shock Tolerance (Non-operating) | Tested according to IEC 60068-2-27 50g, 11 ms, half-sine, 3 shocks in both positive and negative directions, 3 axes, 18 total shocks, non-operating 30g, 18ms, half-sine, 3 shocks in both positive and negative directions, 3 axes, 18 total shocks, non-opera |
| Vibration Tolerance (Operating) | Tested according to MIL-STD-810G, Method 514.6, Category 4, Common Carrier over US Highways 1 hour per axis, 3 axes |
| Vibration Tolerance (Non-operating) | Tested according to IEC 60068-2-64, Category 3, Table A.6 3 axes, except hour/axes only and increase f2 from 150 Hz to 500 Hz, non-operating |
| Dimensions (WxHxD) | 240 x 82 x 242 mm 9.45 x 3.23 x 9.53 |
| Case Type | Automotive Customizable Expandable Fanless Ruggedized |
| Case Material | Aluminum Aluminum Extrusion Steel |
| Port Punchouts | 12 Antenna holes |
| Mounting Options | Wall-mount (with damping bracket) Wall-mount |
