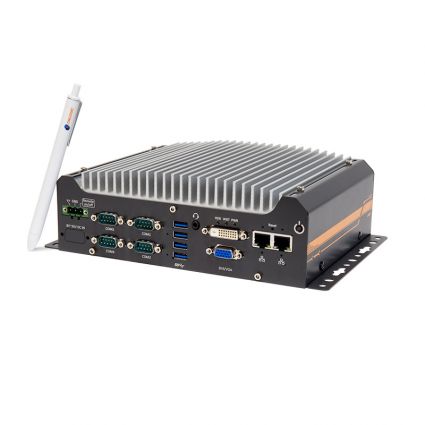

OnLogic Neousys Rugged Entry-Level Compact Fanless Coffee Lake Computer NUVO-7501

ENTRY-LEVEL COFFEE LAKE RUGGED COMPUTER

Nuvo-7501 is a cost-effective, compact and powerful fanless embedded computer featuring a space-saving footprint. Powered by an Intel® 9th/8th-Gen Core™ six or eight-core CPU and up to 32 GB of DDR4 memory, the system offers more than a 50% computational performance improvement over the previous generation.

COMPACT RUGGED FANLESS DESIGN

Thanks to its compact 255 x 173 x 76 mm size, the Nuvo-7501 fits seamlessly into a range of industrial and rugged applications with its MIL-STD-810G rated mechanical design for shock and vibration resistance and ventless, fanless cooling to keep harmful contaminants out. A wide -25°C ~ 60°C operating temperature range ensures reliable performance in any environment, even under full CPU load.

ESSENTIAL RUGGED I/O

The Nuvo-7501 is designed to be simple and compact while retaining essential elements of a rugged embedded fanless solution. It features functional I/O such as 2x GbE, 4x USB3.0 and 4x COM ports to integrate seamlessly into common industrial applications. High-speed storage is available via an M.2 2280 SATA slot and also supports 2.5” SSD/HDD or 3.5” HDD. Options are also available for isolated DIO and COM ports, protecting the controller against ground loops in harsh environments.

CELLULAR CONNECTIVITY

This system is compatible with OnLogic’s Extrovert 4G LTE technology, an integrated modem pre-certified to operate on many of the world’s most popular cellular carrier networks. Extrovert 4G LTE hardware is ideal for today’s mobile, edge computing and Industrial Internet of Things applications. To take advantage of this feature, simply configure your system with Extrovert 4G LTE connectivity and then contact your carrier to activate.
