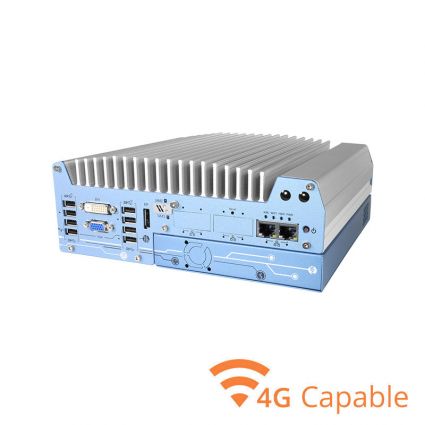

OnLogic Neousys Rugged Intel Coffee Lake Fanless Computer NUVO-7000E

HARNESSING THE POWER OF 8TH GEN

Neousys brings 8th Gen Intel processing to the Nuvo-7000 series rugged embedded computers. The Coffee Lake generation processors increase the core count for the same price, offering more performance per dollar. Four cores are now available on the Core i3 and a remarkable 6 cores are available on the i5 and i7. Support for 2666 MHz DDR4 memory and UHD integrated graphics means the Nuvo-7000E gets a significant performance increase over previous generations. The Nuvo-7000E is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.

RELIABLY RUGGED

The most rugged embedded computer that Neousys has ever created, the Nuvo-7000E is able to handle the most demanding industrial deployments. This is achieved through an array of rugged features that include a wide operating temperature and power input range, sophisticated ESD and power surge protection as well as fanless design that keeps dust, debris, and other forms of ingress out, significantly extending the life of the system. The patented cassette design in combination with a PCIe x16 slot allows you to add in additional I/O or expansion cards, such as an Nvidia graphics card.

CONNECTING MADE EASY

Ready to support your application, the Nuvo-7000E comes equipped with a wide array of I/O and expansion options, giving it impressive versatility. New to this generation are four USB 3.1 Gen 2 ports offer blazing fast data transfer speeds of up to 10 Gbps and a PCIe Gen3 x4 NVMe M.2 SSD that offers read speeds of up to 1800 MB/s. Either two or six Gb LAN ports (four of which can be 802.3at PoE+) matched with the Nuvo-7000E’s rugged capabilities makes the system uniquely suited for networking applications where other systems may fail. If your deployment requires I/O not found on the Nuvo-7000E, MezIO™ expansion cards provide additional I/O options for your application.
