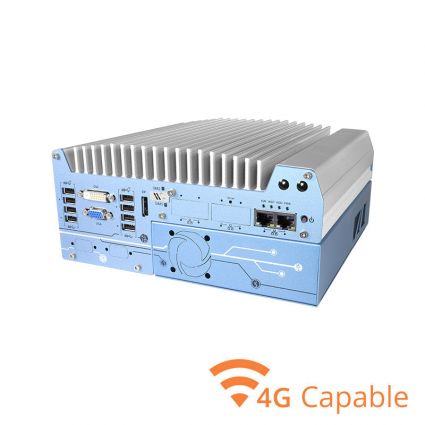

OnLogic Neousys Rugged Intel Coffee Lake Fanless Computer w/Dual PCIe Slots NUVO-7000DE

THE POWER OF 8TH GEN

Neousys brings Intel’s 8th Gen processing to the Nuvo-7000 series of rugged embedded computers which brings with it a number of high-performance features. The Intel® Core™ i3 now offers four cores, and both the i5 and i7 feature a remarkable six cores. Support for 2666 MHz DDR4 memory and UHD integrated graphics provides the Nuvo-7000DE with a significant performance increase over previous generations. The Nuvo-7000DE is also available with 4G LTE connectivity, enabling remote network access or failover protection.

SOPHISTICATED PROTECTION

Neousys’ most rugged embedded system to date, the Nuvo-7000DE easily handles the most demanding deployments with its wide operating temperature and power input range. While the sophisticated ESD and power surge protection, and fanless design that keeps out dust and debris, significantly extends the life of the system. Functional and tough, the Nuvo-7000DE offers two PCIe x8 slots which utilizes a patented cassette design to allow for the addition of sound, network, and other application specific cards with the potential for passive cooling.

FAST AND POWERFUL CONNECTIVITY

The Nuvo-7000DE is ready to support your application with a wide array of I/O and expansion options that give it incredible versatility. New to this generation are four USB 3.1 Gen 2 ports which offer transfer speeds of up to 10 Gbps, and a M.2 2280 M-key slot for an SSD, NVMe, or Intel® Optane™ memory for ultimate system performance. The system can be configured with either two or six Gb LAN ports (and optional 802.3AT PoE+ on ports 3 ~ 6). Matched with its rugged capabilities and expansion options the Nuvo-7000DE is uniquely suited for networking applications where other systems may fail. For video applications, the Nuvo-7000DE offers VGA/DVI/DP ports allowing for triple independent monitor display supporting 4K and 1080p resolutions, and a MezIO™ interface for adding additional I/O.
