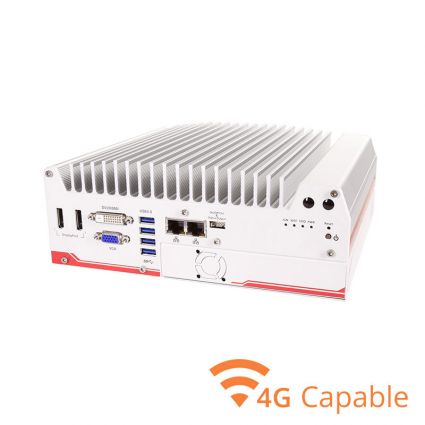

OnLogic Neousys Rugged Intel Skylake Fanless Computer
Part Number: NUVO-5000
THE HEART OF YOUR APPLICATION
Featuring Intel Skylake processing, with up to 40% more performance per watt than previous generation processors, in addition to support for 32GB of memory, the Nuvo-5000 Series is the perfect solution for processor-intensive applications such as machine vision, surveillance or industrial automation. The Nuvo-5000 is also available with optional 4G LTE connectivity, enabling remote network access or failover protection.
UP FOR ANY CHALLENGE
Protected within a hardened, fanless enclosure designed for the most demanding industrial deployments, the Nuvo-5000 Series offers high shock/vibration resistance and a wide operating temperature range as well as numerous expansion options, including dual internal SATA ports supporting RAID 0/1 and dual PCIe Mini card slots. For additional expansion both the Nuvo-5002 and Nuvo-5006 offer a PCIe module interface able to accommodate a PCI or PCIe card, offering features such as a dedicated RAID controller or even Nvidia graphics processing power.
COMMUNICATION IS KEY
Today’s industrial computers must be capable of connecting to a range of modern and legacy systems. The Nuvo-5000 Series’ dual DisplayPort connectors, along with VGA and DVI-D ports, allow for 4K display support as well as multiple independent displays. With eight USB ports (four USB 3.0), three COM ports, and dual Gb LAN ports standard, the Nuvo-5000 is ideal for IP cameras, video capture, or network security. For even greater levels of connectivity, the Nuvo-5006E features four additional LAN ports, while the Nuvo-5006E-PoE offers four 802.3at PoE ports with a total power budget of 80 watts.
| SKU | Nuvo-5000 |
|---|---|
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Socket | LGA1151 |
| Processor Generation | Skylake |
| Chipset | Intel Q170 |
| Graphics/GPU | Intel HD Graphics 510 Intel HD Graphics 530 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Memory Slot Count | 2.000000 |
| Number of Displays Supported | 3 |
| Rear I/O | 4 USB 2.0 ports 2 RS-232/422/485 COM ports 1 RS-232 COM port 2 Audio jacks; mic-in, line-out 1 SIM Card slot 1 3-pin terminal block power connector |
| Front I/O | 4 USB 3.2 Gen 1 ports 2 DisplayPort connectors 1 DVI-D port 1 VGA port 2 LAN ports (4 additional with Nuvo-5006E) Power button Reset button |
| Expansion Options | 1 PCIe Gen3 x16 slot 8-lanes 1 PCIe Mini Card slot (full height with USIM) 1 PCIe Mini Card (full height) |
| Storage Options | 2.5″ HDD/SSD mSATA |
| RAID Support | 0/1 |
| LAN Controller | Intel I210 GbE Intel I219 GbE |
| System Monitoring | TPM 2.0 Support |
| Input Voltage | 8~35 VDC |
| Power Input | 3-pin Terminal Block connector |
| Operating Temperature Range | -25 ~ 70°C |
| Operating Humidity | 10% ~ 90% (non-condensing) |
| Shock Tolerance (Operating) | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Vibration Tolerance (Operating) | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| Dimensions (WxHxD) | 240 x 90 x 225 mm 9.45″ x 3.54″ x 8.86″ |
| Case Type | Fanless Ruggedized |
| Case Material | Aluminum Extrusion Steel |
| Port Punchouts | 4 Antenna holes |
| Mounting Options | DIN-mount Wall-mount |
| Included Accessories | Wall mounting brackets |
